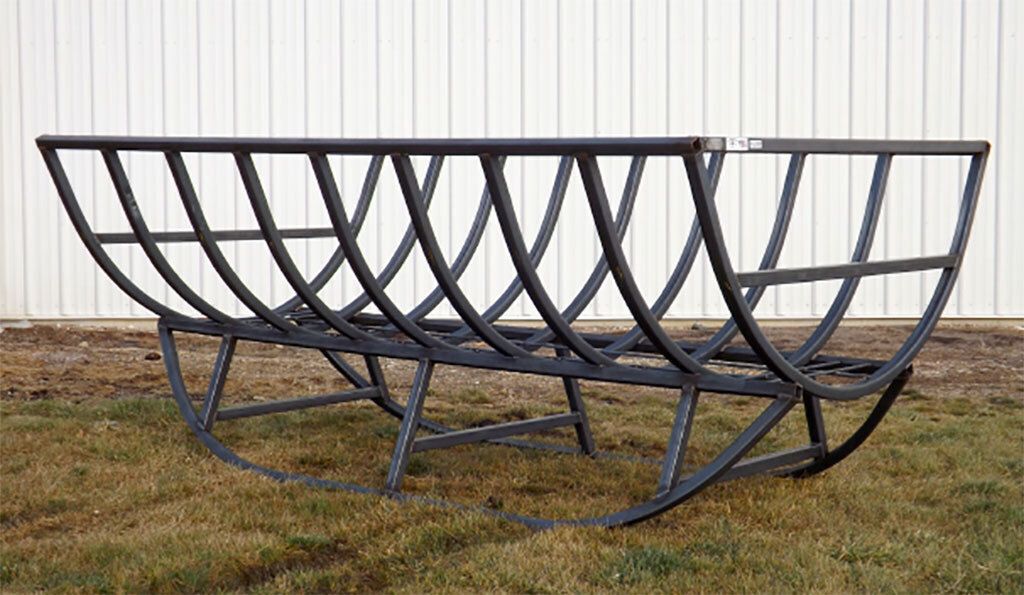

Double Balefeeder

The unique curved bale saddle stops larger animals from stepping on hay dropped below the feeder, but allows smaller animals to get under the feeder far enough to reach the center of the bale. Also available in a smaller size for a single bale.

(Patent # D472681)

Dimensions:5' tall 7'6" wide and 12' long
Net Weight:750 lbs
Workmanship Warranty:1 year
Features & Benefits:curved skid increases portability
Specs:Frame made of 2" x 2" 11 guage square tube
Hoops consist of 2" x 2" 14 gauge square tube

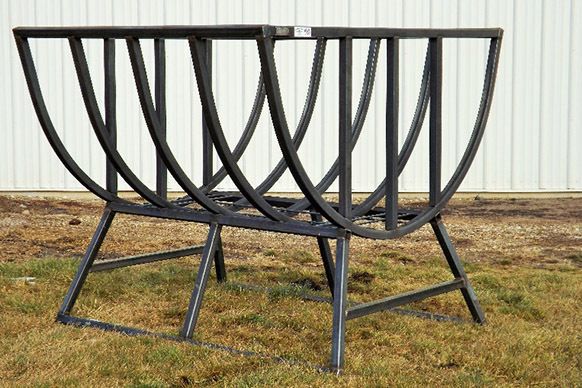

Single Balefeeder

The unique curved bale saddle stops larger animals from stepping on hay dropped below the feeder, but allows smaller animals to get under the feeder far enough to reach the center of the bale. The single balefeeder is taller to prevent horses from rubbing their mane.

Dimensions:6' tall x 7'6" wide x 6' long
Net Weight:600 lbs
Workmanship Warranty:1 year
Features & Benefits:Taller to prevent horses from rubbing their mane
Specs:Frame made of 2"x2" 11 guage square tube

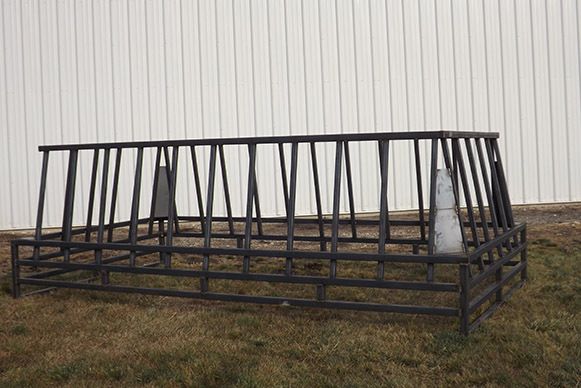

Double Ground Balefeeder

This extremely heavy built feeder should be used for large animals. Feeder is designed to have less hay loss due to its tapered sides.

Dimensions:5' tall, top is 12 1/2' x 7', base is 13'10" x 8' at base
Net Weight:850 lbs
Workmanship Warranty:1 year
Features & Benefits:Less hay loss due to its tapered sides
Specs:Frame made of 2" x 2" 11 guage square tube
with 1 1/2" 11 gauge square neck bars

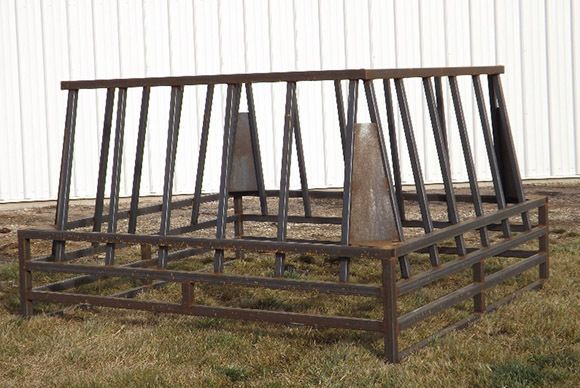

Single Ground Balefeeder

This extremely heavy built feeder should be used for large animals. Feeder is designed to have less hay loss due to its tapered sides.

Dimensions:5' tall, top is 7' x 7' and base is 8' x 8'
Net Weight:450 lbs
Workmanship Warranty:1 year
Features & Benefits:Less hay loss due to its tapered sides
Specs:Frame made of 2" x 2" 11 guage square tube
with 1 1/2" 11 gauge square neck bars

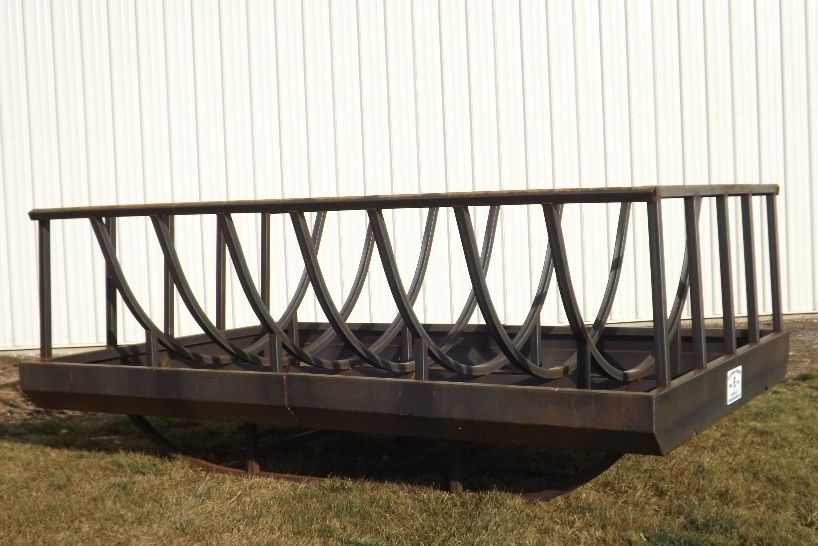

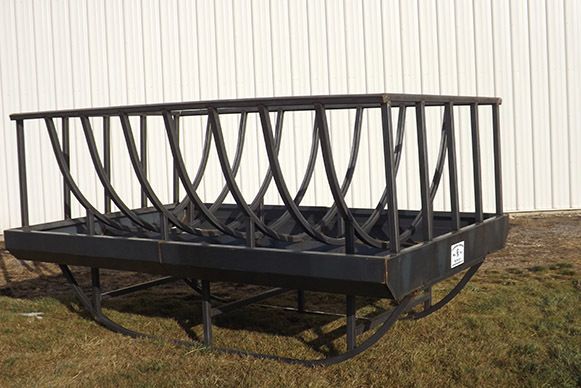

Double Cow Balefeeder with Pan

This balefeeder has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.

Dimensions:5' tall, 7 1/2' wide across top and 12' long
Net Weight:1200 lbs
Workmanship Warranty:1 year
Features & Benefits:Pan under the cradle to help reduce waste
Specs:Frame made of 2" x 2" 11 gauge square tube
Hoops consist of 2" x 2" 14 gauge square tube
Pan is made of 10 gauge sheet steel

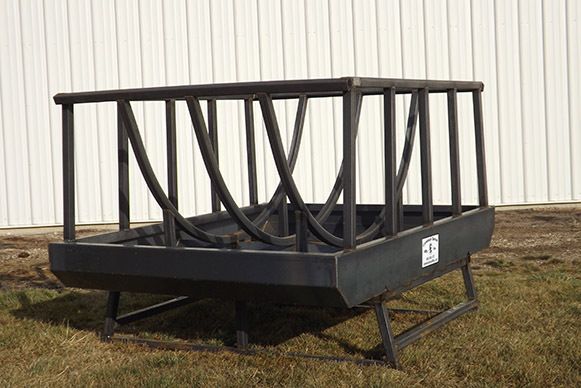

Single Cow Balefeeder with Pan

This balefeeder has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste.

Dimensions:5' tall, 7 1/2' wide across top and 6' long
Net Weight:680 lbs
Workmanship Warranty:1 year
Features & Benefits:Pan under the cradle to help reduce waste
Specs:Frame made of 2" x 2" 11 gauge square tube steel
Hoops consist of 2" x 2" 14 gauge square tube
Pan is made of 10 gauge sheet steel

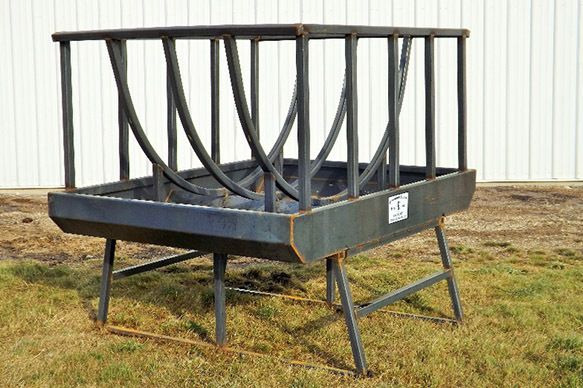

Single Horse Balefeeder with Pan

This balefeeder has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste. This balefeeder is taller to prevent horses from rubbing their mane.

Dimensions:6' tall, 7 1/2' wide across top and 6' long
Net Weight:690 lbs
Workmanship Warranty:1 year
Features & Benefits:Pan to reduce waste & is taller to prevent horses from rubbing their mane
Specs:Frame made of 2" x 2" 11 gauge square tube
Hoops consist of 2" x 2" 14 gauge square tube
Pan is made of 10 gauge sheet steel

Double Horse Balefeeder with Pan

This balefeeder has the same great features as the cradle style but adds a full 10 gauge pan under the cradle to help reduce waste. This balefeeder is taller to prevent horses from rubbing their mane.

Dimensions:6' tall, 7 1/2' wide across top and 12' long
Net Weight:1225 lbs
Workmanship Warranty:1 year
Features & Benefits:Pan to reduce waste & is taller to prevent horses from rubbing their mane
Specs:Frame made of 2" x 2" 11 gauge square tube
Hoops consist of 2" x 2" 14 gauge square tube
Pan is made of 10 gauge sheet steel

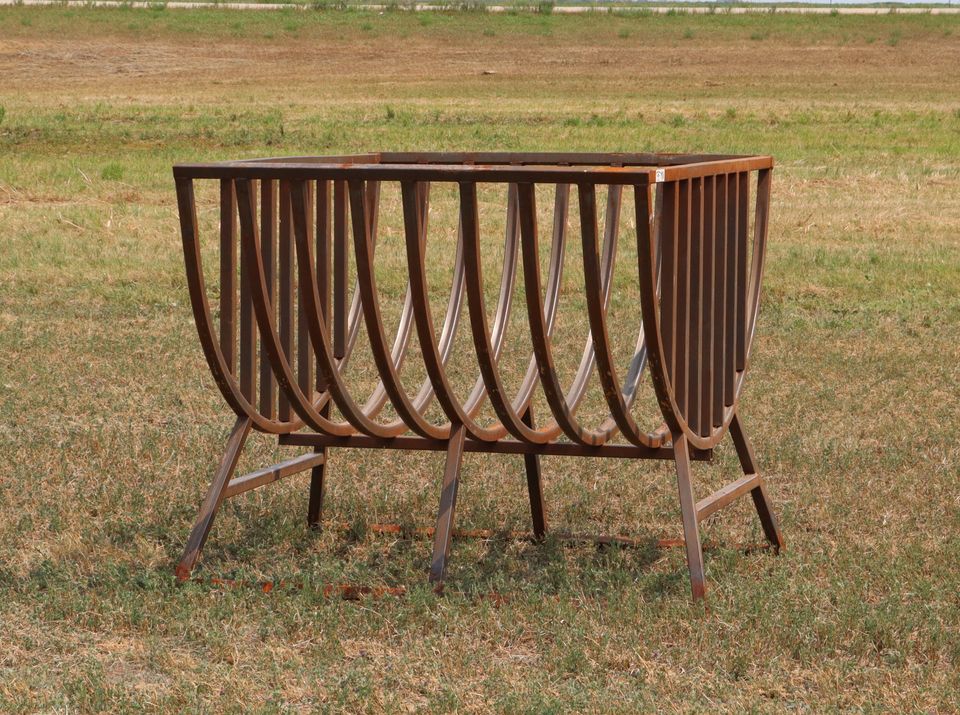

Single Goat/Sheep Balefeeder

These balefeeders have the great curved design to accommodate goat and sheep. These feeders have extra bars to make smaller, 6 inch openings to stop sheep and goats from getting into the feeder. Also available in 12' long.

Dimensions:5 1/2' tall, 7 1/2' wide across top and 6' long
Net Weight:510 lbs
Workmanship Warranty:1 year
Features & Benefits:Extra bars to make smaller openings to stop animals from getting into the feeder
Specs:Frame made of 2" x 2" 11 gauge square tube
Hoops consist of 2" x 2" 14 gauge square tube

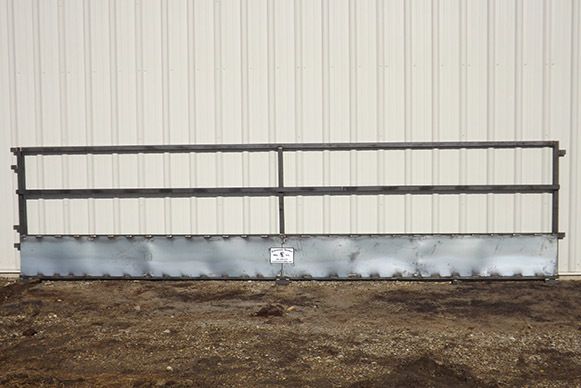

Feed Through Panel

This feed through panel is a less expensive alternative to our fenceline feed bunks. Designed with bottom bar adjustable for different animal sizes. Available is 10’ or 20’ lengths. Animal feeding height is 20”. One inch pins are included.

Dimensions:5' tall, 10' or 20' long
Net Weight:10' weighs 165 lbs 20' weights 300 lbs
Workmanship Warranty:1 year
Featuers & Benefits:Adjustable neck bar. Less expensive than a full feed bunk
Specs:Frame made of 2” x 2” 11 gauge square tube
Sheeting is 14 gauge sheet metal
