Common Sense Manufacturing Inc

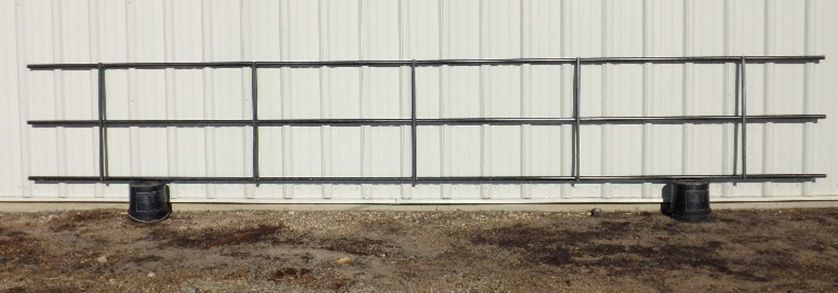

3-Bar 20' Continuous Fence

This continuous fence is designed for quick and easy installation. This 3-bar panel is great for a decorative-type fence.

Dimensions: 3' high x 20' long
Spacing: 16" spacing between bars
Net Weight: 81 lbs.
Warranty: 1 year
Features & Benefits: 3 splicer pipes, 3 clips, and six 3" construction screws included
Specs: 1 1/4" 14 gauge round horizontal tubing
Five 1" 11 gauge square tube uprights per panel

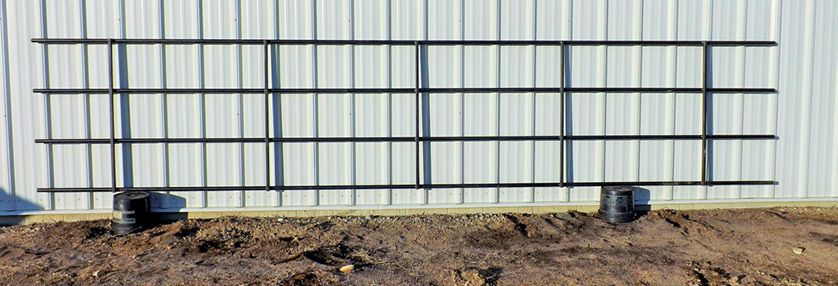

4-Bar 20' Continuous Fence

This continuous fence is designed for quick and easy installation. This is a good fence for perimeter horse pens.

Dimensions: 4' high x 20' long
Spacing: 14 1/4" spacing between bars
Net Weight: 108 lbs.
Warranty: 1 year
Features & Benefits: 4 splicer pipes, 4 clips, and eight 3" construction screws included
Specs: 1 1/4" 14 gauge round horizontal tubing
Five 1" 11 gauge square tube uprights per panel

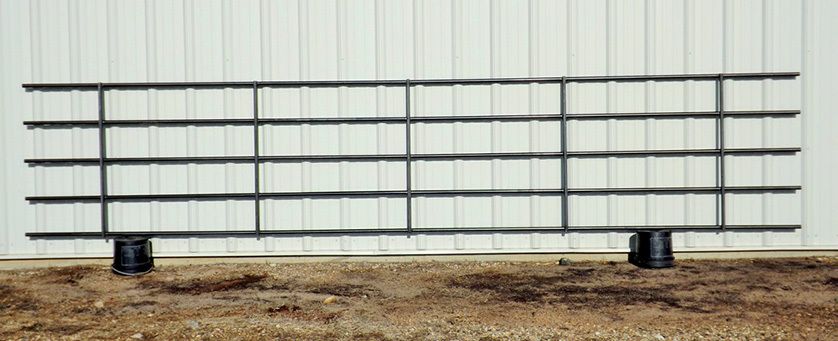

5-Bar 20' Continuous Fence

This continuous fence is designed for quick and easy installation .

Dimensions: 4' high x 20' long
Spacing:10 1/2" spacing between bars
Net Weight: 128 lbs.
Warranty: 1 year
Features & Benefits:5 splicer pipes, 5 clips, and ten 3" construction screws included
Specs: 1 1/4" 14 gauge round horizontal tubing
Five 1" 11 gauge square tube uprights per panel

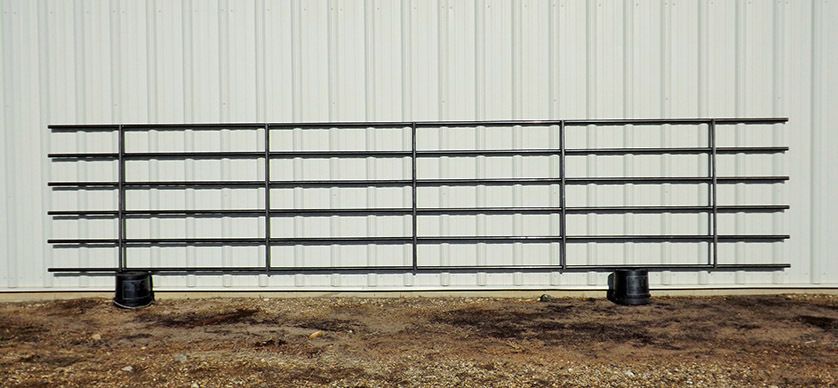

6-Bar 20' Continuous Fence

This continuous fence is designed for quick and easy installation .

Dimensions: 4' high x 20' long
Spacing:8" spacing between bars
Net Weight: 148 lbs.
Warranty: 1 year
Features & Benefits: 6 splicer pipes, 6 clips, and twelve 3" construction screws included
Specs: 1 1/4" 14 gauge round horizontal tubing
Five 1" 11 gauge square tube uprights per panel

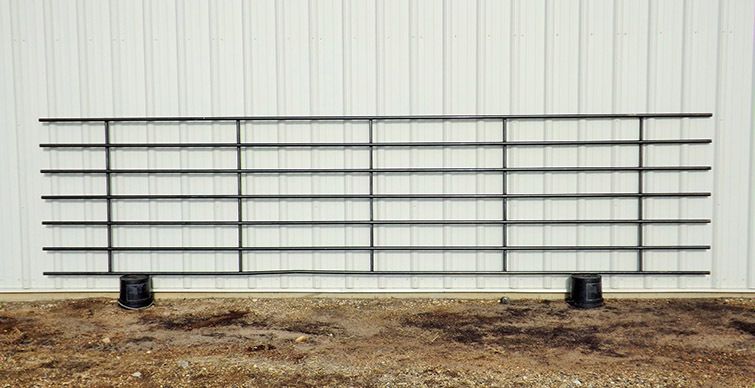

7-Bar 20' Continuous Fence

This continuous fence is designed for quick and easy installation. .

Dimensions :57" high x 20' long
Spacing: 8" spacing between bars
Net Weight: 175 lbs.
Warranty: 1 year
Features & Benefits: 7 splicer pipes, 7 clips, and fourteen 3" construction scews included
Specs: 1 1/4" 14 ga. round horizontal tubing
Five 1" 11 gauge square tube uprights.per panel

Ends for Continous Fence

These endcaps are designed to cover up the raw ends on continuous fence. The 90° continuous end is meant to create a corner on the continuous fence. The regular continuous fence end finishes a raw edge on all sizes of continuous fence.

Dimensions: 48" tall
Net Weight: 10-15 lbs.
Warranty: 1 year
Features & Benefits: Covers up the raw edges or corners of continuous fence
Specs: 1-1/2" x 1-1/2" 16 guage square tube upright
1" pipe stubs

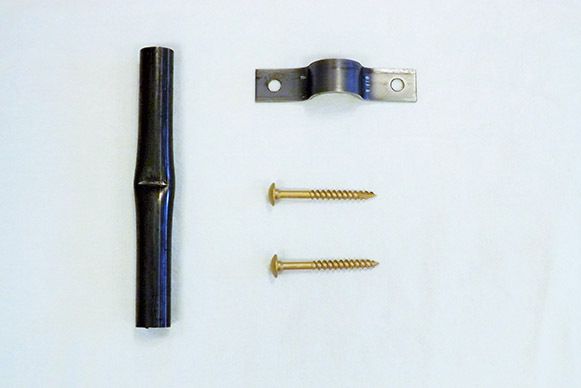

Countinous Fence Splicers, Clips and Screws

Each continuous fence panel we sell includes one splicer pipe, one clip and two screws per bar.

Splicer pipes are 1” round x 8”long. Clips are 1”x1/8” thick with two 3/8” holes. Screws are 3” construction lag screws.

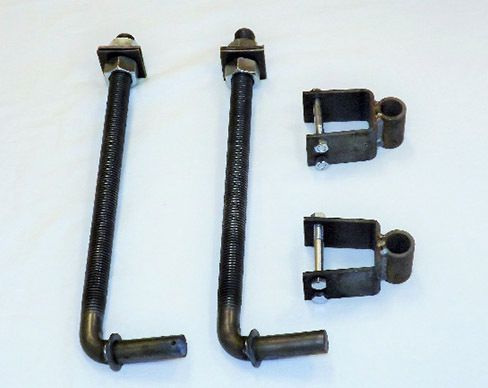

Gate Hinge Set

1” full thread hinge set is included with each of our gates. One of the two hinges has hole for cotter key. Gate clamps are made to fit onto our gates.

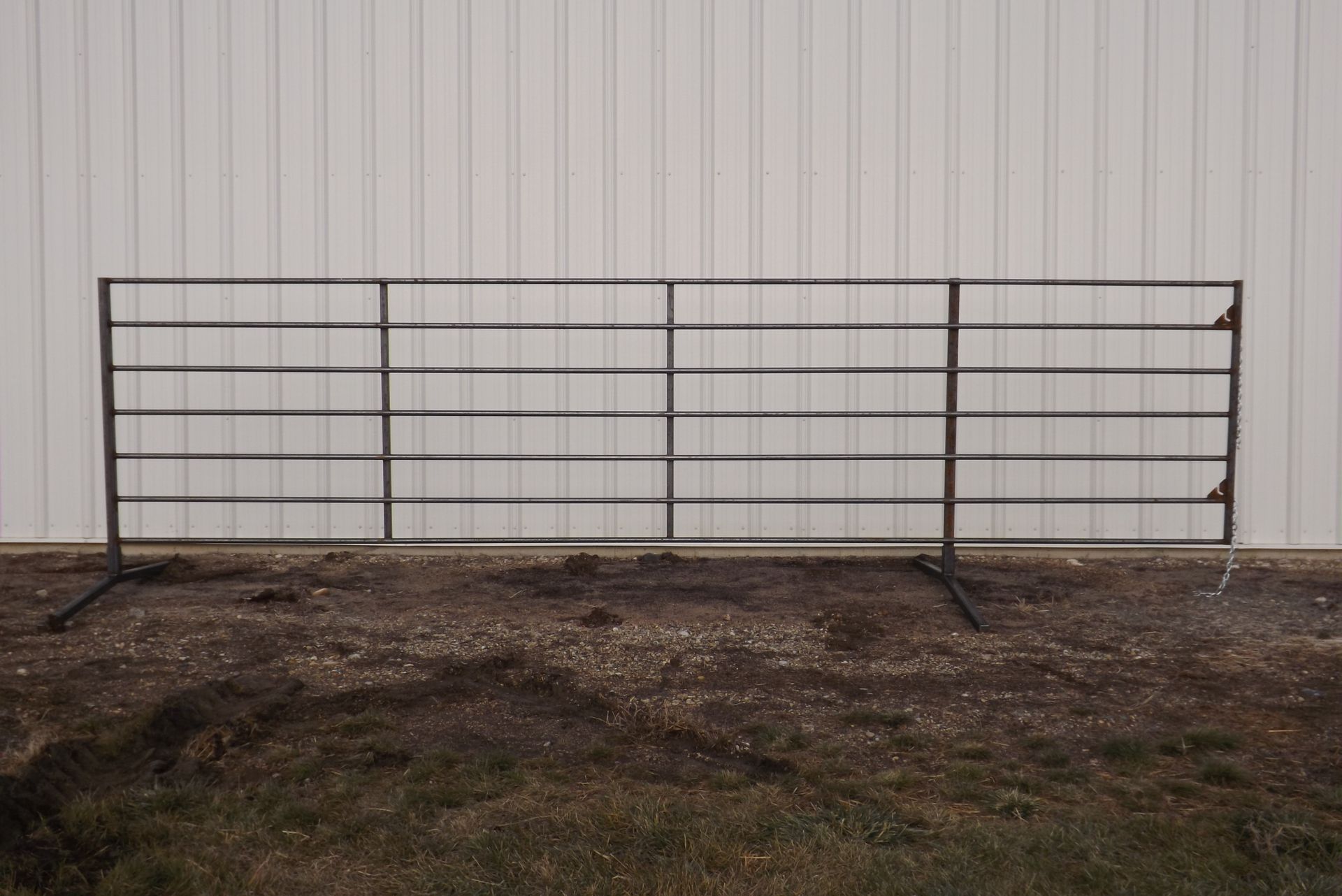

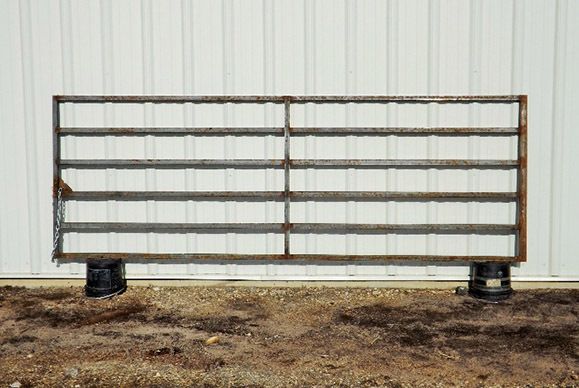

6-Bar 48" Gates

These gates are 6 bars high with widths available in 8’, 10’ 12’, 14’, and 16’. Heavy 1” threaded hinges are included. Custom sized gates are also available.

Dimensions: 48" tall with a varying width
Spacing: 7 3/4" spacing between bars
Net Weight: 8’= 65lbs, 10’= 8lbs, 12’= 100lbs, 14’= 127lbs, 16’= 146lbs, 18’= 165lbs
Warranty:1 year
Features & Benefits: Can be easily attached to the free standing
Specs: 2” x 2” 11 gauge square hinge end
6- bars of 1-1/2” 16 gauge square horizontal tubing
1-1/2” x 3/16” flat iron uprights
1-1/2” 11 gauge square chain end
1” diameter hinges

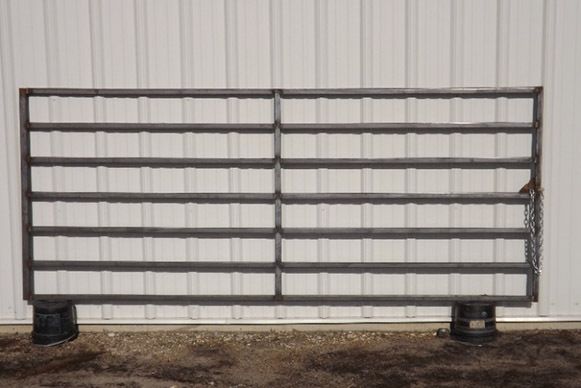

7-Bar 57" Gates

These gates are 7 bars high with widths available in 8’, 10’ 12’, 14’, and 16’. Heavy 1” threaded hinges are included. Custom sized gates are also available.

Dimensions: 57" tall with a varying width
Spacing: 7 3/4" spacing between bars
Net Weight: 8’=91lbs, 10’=116lbs, 12’=140lbs, 14’=175lbs, 16’=202lbs, 18’=228lbs
Warranty:1 year
Features & Benefits: Can be easily attached to the free standing
Specs: 2” x 2” 11 gauge square hinge end
6- bars of 1-1/2” 16 gauge square horizontal tubing
1-1/2” x 3/16” flat iron uprights
1-1/2” 11 gauge square chain end
1” diameter hinges

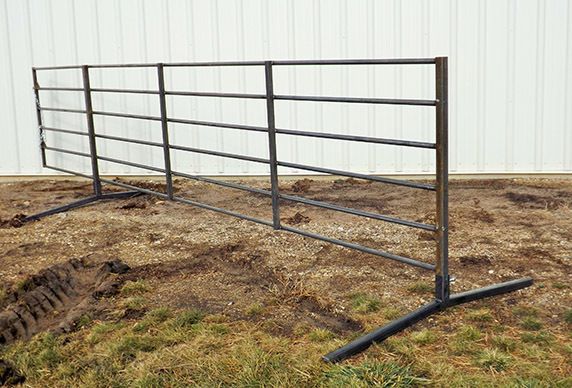

6-Bar 20' Medium Duty Freestanding Panel

This medium duty freestanding panel is made of 6 1-1”4” 14gauge round horizontal bars and 5 uprights made of 2” 11 gauge square tubing. It has 2 removable 6’ legs and two gate latches and chains on one end.

Dimensions: 58" tall x 20' long
Net Weight: 200 lbs.
Warranty: 1 year
Features & Benefits: Medium weight panel that is easy to move
Specs: 6 1-1/4" 14 ga. round horizontal bars
2" heavy square tubing uprights
Removable 6' legs

7-Bar 20' Medium Duty Freestanding Panel

This medium duty freestanding panel is made of 7 1-1”4” 14 gauge round horizontal bars and 5 uprights made of 2” 11 gauge square tubing. It has 2 removable 6’ legs and two gate latches and chains on one end.

Dimensions: 69" tall x 20' long
Net Weight: 240 lbs.
Warranty: 1 year
Features & Benefits: Medium weight panel that is easy to move
Specs: 7 1-1/4" 14 gauge round horizontal bars
2" heavy square tubing uprights
Removable 6' legs

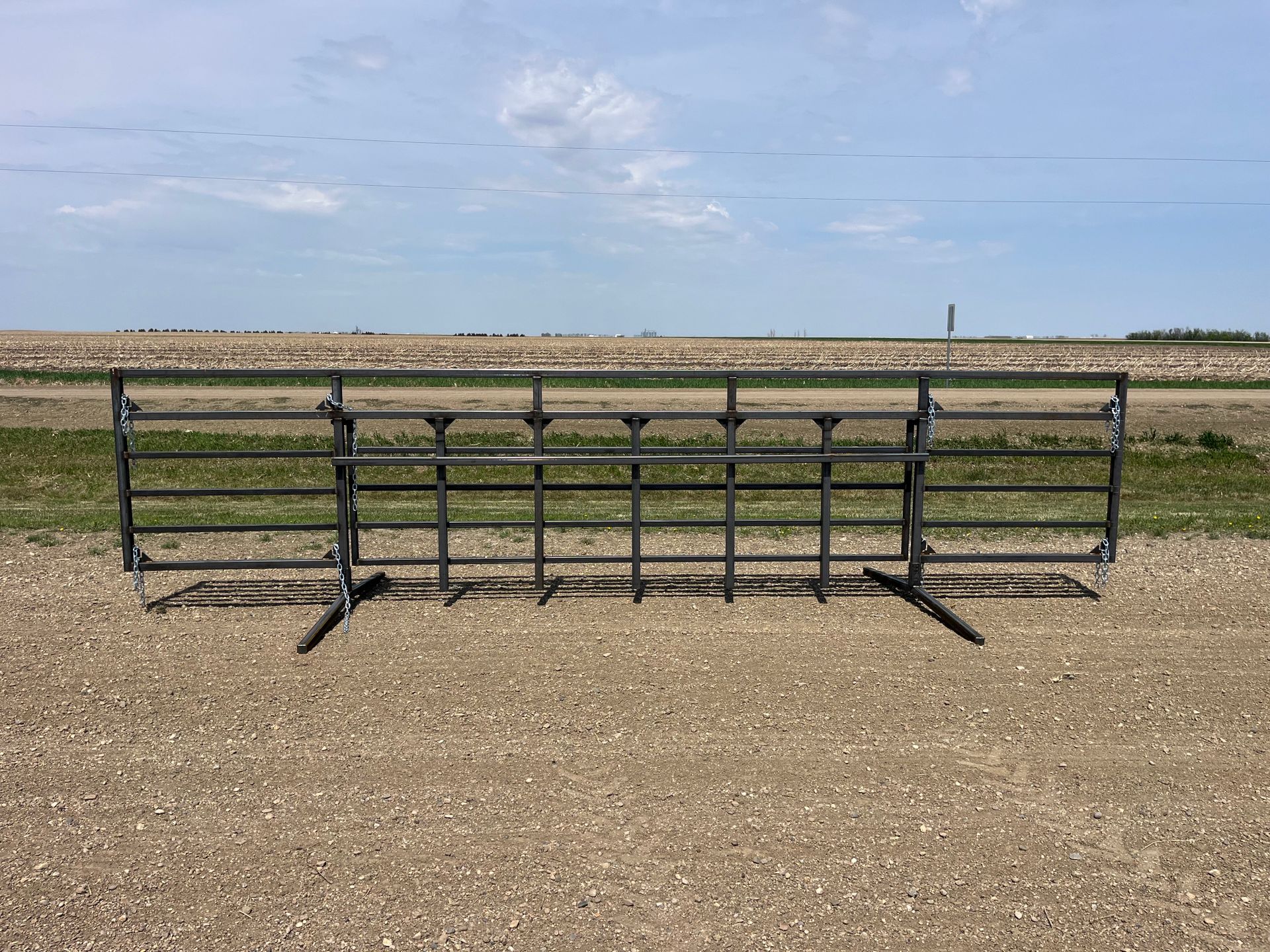

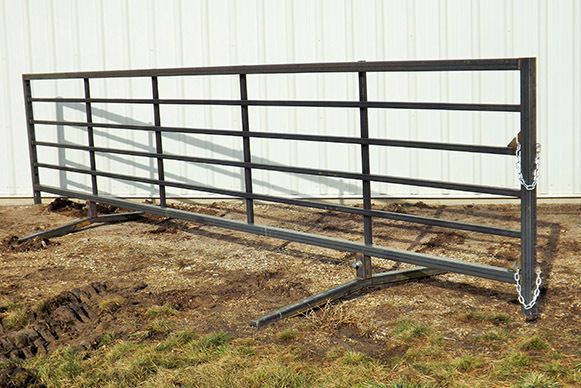

6-Bar 20' Heavy-Duty Freestanding Panel

This heavy duty freestanding panel is made with an outer frame of 2-1/2”x 2-1/2” 11 gauge square tubing. The inner frame and uprights are made of 1-1/2” x 1-1/2” 11 gauge square tubing. It has 2 movable 6’ legs and 2 gate latches and 2 chains on one end. This panel is made with 6’ movable legs to accommodate a corner.

Dimensions: 58" tall x 20'
Net Weight: 500 lbs.
Warranty: 1 year
Features & Benefits: Heavy duty panel is good for high-pressure points
Specs: 1-1/2” x 1-1/2” 11 guage square tubing inner frame and uprights
2-1/2”x 2-1/2” 11 guage square tubing outer frame
movable 6' legs
2 gate latches and 2 chains on one end

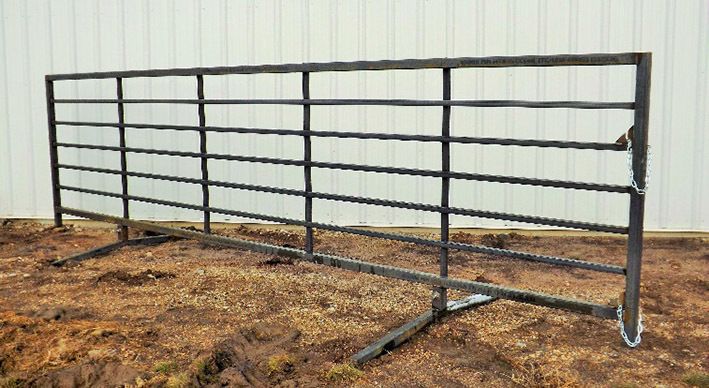

7-Bar 20' Heavy-Duty Freestanding Panel

This heavy duty freestanding panel is made with an outer frame of 2-1/2”x 2-1/2” 11 gauge square tubing. The inner frame and uprights are made of 1-1/2” x 1-1/2” 11 gauge square tubing. It has 2 movable 6’ legs and 2 gate latches and 2 chains on one end.

Dimensions: 69" tall x 20' long
Net Weight: 575 lbs.
Warranty: 1 year
Features & Benefits: Heavy duty panel is good for high-pressure points
Specs: 1-1/2” x 1-1/2” 11 guage square tubing inner frame and uprights
2-1/2”x 2-1/2” 11 guage square tubing outer frame
removable 6' legs
2 gate latches and 2 chains on one end

Quality That Just Makes Sense!
